3M

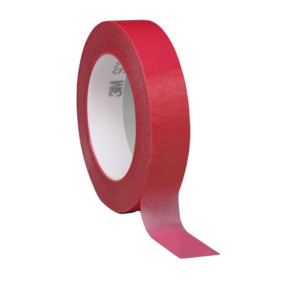

3M 7010045121 Circuit Plating Tape 1280 Red, 3"x144yds x 4.2 mil
Our Part #10029767
Mfr Part #7010045121
3M
3M 7010045121 Circuit Plating Tape 1280 Red, 3"x144yds x 4.2 mil
Our Part #10029767
Condition:NEW
Mfr Part #7010045121
Has Expiration Date
$Roll
Multiples of: 15
Has Expiration Date
- Description
- Specifications
3M™ Circuit Plating Tape 1280 with polyester film used for PCB masking tape or other high temperature applications. Red. 3.6 mil thick.
Standard Lead Time: 20 Calendar Days
Features:- Low stretch polyester film for machine, as well as hand application
- Solvent clean up of the board is recommended to facilitate subsequent soldering
- Polyester backing reduces stretch and recovery of tape and associated uneven stop-off line
- Thick adhesive coating reduces undercutting because adhesive helps block out solutions between fingers
- Polyethylene tape core instead of cardboard
- Color: Red
- Part Number: 1280
- Width: 3 in
Brand: 3M
Alternate Product Number: 00021200606939-31196
Color: Red
Width: 3"
Adhesion Strength: 31 oz./in.
Adhesive Material: Blended Silicone & Rubber
Applications: PCB Masking, Splicing
Backing Material: Polyester Film
Dimensions: 3 in x 144 yd 4.2 mil
Length: 144 yd.
Series: 1280 Series
Shelf Life: 540 days
Tensile Strength: 30 lb./in.
Thickness: 3.6 mil
$Roll
Multiples of: 15
