3M

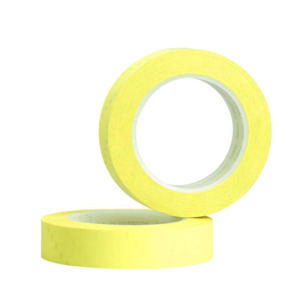

3M 7010045327 Polyester Film Electrical Tape 74, 1"x72yd, Yellow
Our Part #10029945
Mfr Part #7010045327
3M
3M 7010045327 Polyester Film Electrical Tape 74, 1"x72yd, Yellow
Our Part #10029945
Condition:NEW
Mfr Part #7010045327
RoHS
$Roll
Multiples of: 36
RoHS
- Description
- Specifications
3M™ Polyester Film Electrical Tape 74 is a 0.8 mil thick, general purpose, electrical tape with polyester film backing. It withstands a temperature range of 32 to 266 °F (0 to 130 °C).
3M™ Tape 74 has a thermosetting, rubber adhesive which offers excellent resistance to chemicals, solvents, moisture and cut through. This highly conformable tape provides high dielectric strength and withstands high temperature conditions. RoHS 2011/65/EU Compliant.?
Features:- Thermosetting, rubber adhesive with polyester film backing offers excellent resistance to chemicals, solvents, moisture, abrasion and cut-through
- Offers good electrical strength for coil applications where space is at a premium
- General-purpose tape
- Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
- RoHS 2011/65/EU Compliant
- Color: Yellow
- Part Number: 74 1"X72YD
- Specifications: RoHS 2011/65/EU, UL RecognizedN/A
- Width: 1 in
Brand: 3M
Length: 72 yd.
Width: 1"
Color: Yellow
Thickness: 0.8 mil
Adhesion Strength: 20 oz./in.
Adhesive Material: Thermosetting Rubber
Alternate Product Number: 00051128569436-31196
Applications: Good Electrical Strength for Coil where Space is at a Premium
Backing Material: Polyester Film
Dielectric Strength: 3500 V
Series: 74 Series
Standards: ASTM
Temperature Rating: 0 to 130°C
Tensile Strength: 12 lb./in.
$Roll
Multiples of: 36
