Pasternack PE91321 Adapter, Push-On SMA Male to SMA Female, Bulkhead Mount, Up to 18 GHz

Our Part #10033464

Mfr Part #PE91321

Pasternack PE91321
Pasternack
Pasternack

Pasternack PE91321 Adapter, Push-On SMA Male to SMA Female, Bulkhead Mount, Up to 18 GHz

Our Part #10033464

Condition:New

Mfr Part #PE91321

Has Expiration Date
$54.12EACH
Has Expiration Date
  • Max VSWR of 1.23:1 up to 18 GHz
  • SMA Interface compliant with MIL-STD-348A
  • Gold Plated Beryllium Copper Contact
  • 30 µ-in min Gold Contact Plating

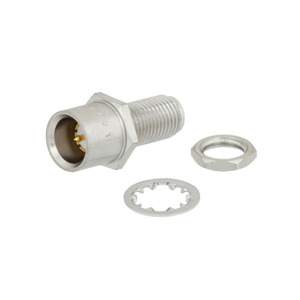

Pasternack’s PE91321 bulkhead push-on SMA male-to-SMA female adapter is compatible with commercially available 3.5mm and 2.92mm (K) connectors. This SMA-to-SMA adapter features a male-to-female configuration and operates up to 18 GHz. The Pasternack RF adapter offers an excellent maximum VSWR of 1.23:1. This RF SMA bulkhead to SMA adapter allows designers to create external connections on their product enclosures and can be used in various rack mount and panel mount applications.

RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment, especially where the number of connect/disconnect cycles is high. An RF, microwave, or millimeter-wave adapter is connected to the equipment, while the commonly changed connection is made with the adapter, which can be easily replaced when it wears out after extensive use; such adapters are referred to as connector savers.

BrandPasternack
Impedance50 Ohms
Length0.795"
Product TypeAdapter
Width0.377"
$54.12EACH
