Metcal

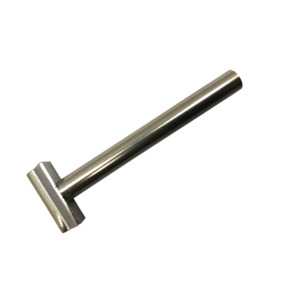

Metcal CCV-BL250 Soldering Tip, Rework, Blade, 25mm x 9.1mm, 0.5 mm Thick, 450 Deg. C, CCV Series
Our Part #10042853
Mfr Part #CCV-BL250
Metcal
Metcal CCV-BL250 Soldering Tip, Rework, Blade, 25mm x 9.1mm, 0.5 mm Thick, 450 Deg. C, CCV Series
Our Part #10042853
Condition:New
Mfr Part #CCV-BL250
$91.20EACH
| Qty: | Price: | Savings |
|---|---|---|
| 1 | $91.20 | |
| 2 | $89.38 | Save |
| 5 | $88.46 | Save |
| 10 | $87.55 | Save |
| 25 | $86.64 | Save |
- Description
- Specifications
- Documents
CxV-Solder Blades are part of the rework soldering tips for the Metcal PS-900/MFR-1120, MFR-2220-series soldering systems. The second letter of the part number designates the temperature series. The CFV temperature series is nominally 390 ˚C. Metcal recommends the CFV temperature series for most applications. However, there is a higher temperature range designated CCV, nominally 450 ˚C, for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal "SmartHeat® Technology" automatically adjusts power levels during each soldering operation.
Brand: Metcal
Series: CCV Series
Tip Type: Blade/Spatula
Tip Width: 25 mm
Tip Length: 9.1 mm
Temperature Rating: 450°C
Lead Free Solder Compatible: Yes
Applications: Ceramic and High Thermal Demand
Fits: Metcal PS-HC3 and MFR-H2-ST Handpieces, PS-CA3 and MFR-CA2 Coil Assemblies
For Use With: Metcal PS-900/MFR-1120, MFR-2220 Series Soldering Systems
Tip Thickness: 0.5 mm
