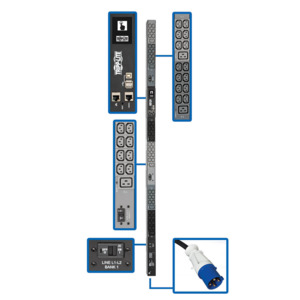

• 14.5kW 200-240V 3-phase Gigabit Ethernet-capable 0U monitored PDU
• 48 outlets—42 C13, 6 C19—with plug-lock inserts
• Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
• IEC 309 60A Blue (3P+E) input with 3 m power cord
• Touchscreen LCD with mobile access option via QR code

14.5kW 3-phase PDU with multifunction touchscreen LCD distributes and monitors AC power in an IT environment. Built-in Java-free network interface remotely monitors load levels to prevent overloads that cause downtime.

14.5kW 200-240V 3PH Monitored PDU, LX Interface, Gigabit, 48 Outlets, IEC 309 60A Blue Input, LCD, 3 m Cord, 0U 1.8 m Height, TAA
Distributes and Monitors Network-Grade AC Power
■ 14.5kW 200-240V monitored PDU with 3-phase input
■ IEC 309 60A Blue (3P+E) plug with 10-ft. (3.05 m) cord connects to compatible AC power source
■ Firmware upgrades support future product enhancements 48 Outlets Distribute AC Power
■ 42 C13 and 6 C19 split into 3 separately breakered load banks
■ Plug-lock insert sleeves prevent cables from becoming accidentally disconnected Color Touchscreen LCD
■ Reports network data, including IP address, input current level per phase and output current per load bank with ±1% billing-grade accuracy
■ Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device
■ Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials Pre-Installed GbE-Capable Network Interface Offers 24/7 Remote Access for Monitoring and Control
■ The built-in WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite’s PowerAlert Element Manager (PAEM) software form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations. Broad Communications Compatibility
■ Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
■ Supports automatic and manual assignment of IP address Easy 0U Installation in EIA-Standard 19 in. Racks
■ Mounts vertically using included toolless buttons or rack-mounting brackets
■ Included PDUMVROTATEBRKT allows mounting with rear-facing outlets TAA-Compliant
■ Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
