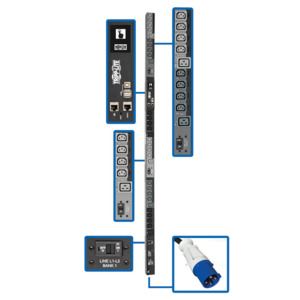

• 14.5kW 200-240V 3-phase switched 0U PDU
• 30 individually controllable outlets—24 C13, 6 C19
• Pre-installed GbE-capable WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
• IEC 309 60A Blue PDU input with 1.8 m power cord
• Touchscreen LCD with mobile access option via QR code

14.5kW 3-phase PDU with multi-function touchscreen LCD distributes, monitors and manages AC power. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.
Distributes, Monitors and Manages Network-Grade AC Power
■ 14.5kW 200-240V switched PDU with 3-phase input
■ Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
■ IEC 309 60A Blue plug with 6-ft. (1.83 m) cord connects to compatible AC power source
■ Firmware upgrades support future product enhancements 30 Switched Outlets Distribute AC Power
■ 24 C13 and 6 C19 outlets split into 3 separately breakered load banks
■ Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
■ Plug-lock insert sleeves prevent cables from becoming accidentally disconnected Color Touchscreen LCD
■ Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy
■ Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device
■ Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials Built-In GbE-Capable LX Interface
■ Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
■ PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
■ IP-based Auto Probe detects lost connectivity and restores service autonomously Broad Communications Compatibility
■ Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
■ Supports automatic and manual assignment of IP address Easy 0U Installation in EIA-Standard 19 in. Racks
■ Mounts vertically using included toolless buttons or rack-mounting brackets
■ Included PDUMVROTATEBRKT allows mounting with rear-facing outlets TAA-Compliant
■ Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
