• Switched 12A 120V PDU, 1U horizontal rackmount format
• Reports voltage, frequency & load level via Ethernet interface
• Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
• NEMA 5-15P input with attached 12-ft. (3.66 m) line cord
• 16 NEMA 5-15R switched outlets with cord retention brackets
• Temperature, humidity and contact closure monitoring options
• TAA Compliant

Regular Business hours installation of Tripp Lite single-phase, 208 volt UPS suite (10KRT through 20KRT Only) in rack or tower application conducted within the US (lower 48 states). Includes UPS suite and up to one auxiliary external battery pack. Contact Tripp Lite to price additional charges that apply to installation of more than one external battery packs. Excludes any and all electrical installation (breakers, circuits, conduits, fuses, subpanels, wiring), UPS Start-up and onsite warranty or warranty extension.

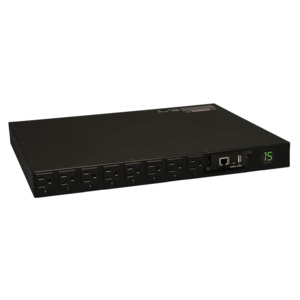

1.4kW Single-Phase Switched PDU, LX Interface, 120V Outlets (16 5-15R), 5-15P, 120V Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

■ 15A 120V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 12A continuous)
■ Attached NEMA 5-15P 120V single phase input; 12-ft. (3.66 m) cord
■ 1U horizontal rackmount form factor
■ 16 switched NEMA 5-15R outlet (8 front / 8 rear)
■ Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
■ Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
■ Network interface provides PDU control and data regarding input voltage and total output load level in amps
■ Digital display continuously reports total output load level in amps
■ Supports user-specified alarm notification thresholds
■ 10/100 Mbps auto-sensing
■ Real-time clock backup maintains the time of day and date even if the PDU is unpowered
■ Tiered access privileges allow an administrator and a guest to login via web browser
■ Alert notifications via email or SNMP traps offer immediate event notification
■ Firmware upgrade ability supports future product enhancements
■ Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
■ PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
■ IP-based Auto Probe detects lost connectivity and restores service autonomously
■ 1U horizontal rack installation supported in 2 or 4 post racks with included mounting brackets
■ Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
■ Included cord retention brackets
■ Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
