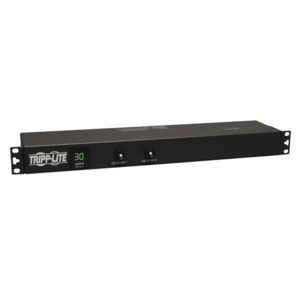

- Local Metered single phase 24A 120V 1U horizontal rackmount PDU
- Two-digit current meter reports total PDU input current in amps
- Attached 15-ft. (4.57 m) cord with NEMA L5-30P input plug
- 12 NEMA 5-15/20R outlets
- Reversible housing, 6.5 in. / 16.5cm depth
â– 30A single phase 120V Local Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)
â– Two-digit lighted meter reports total PDU input current in amps
â– Attached L5-30P 30A 120V input plug with 15-ft. (4.57 m) line cord
â– 1U horizontal rackmount format installs in one rack space
â– 12 NEMA 5-15/20R outlets
â– Outlets are arranged in two loading banks, each with separate 20A breaker protection
â– Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
â– Mounting ears are reversible for front or rear facing rackmount installation
â– Back panel grounding lug
Brand:Â Tripp Lite
Includes:Â PDUMH30 Local Metered rackmount PDU, Owner's manual with warranty information
Note:Â Batteries not Required to Operate
Type:Â PDU
Warranty Information:Â 2-year limited warranty
