• Two single-phase L6-20P inputs with 10-ft. (3.05 m) cords
• L6-20R outlet for connecting single device or 0U vertical PDU
• Automatic transfer switching within 1-5 ms
• Built-in LX Platform Interface for remote access
• Digital display for real-time status monitoring

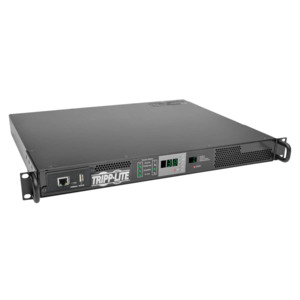

High-capacity 3.3/3.8kW PDU with ATS provides remote power monitoring and enables redundant power for non-redundant hardware. Digital display and Ethernet interface monitor load levels to prevent overloads that cause downtime.
Primary and Secondary Inputs for Power Redundancy
■ Provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations
■ Dual 10-ft. (3.05 m) input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources
■ Fault-tolerant, hot-swappable UPS protection when used with single UPS; fully redundant UPS protection when each cord is connected to separate UPS systems Built-In L6-20R Outlet
■ Connects a single device or indirectly powers equipment through a 0U 200-240V PDU with L6-20P input (sold separately) Automatic Transfer Switching (ATS)
■ Dynamic solid-state (TRIAC) automatic transfer switching
■ Switches to secondary power source if primary source fails or becomes unstable
■ 1-5 ms transfer time ensures uninterrupted operation of connected equipment
■ Built-in processor prevents switching if secondary source is unavailable or of lower quality than primary source Multifunction Digital Display
■ Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor Advanced Network Monitoring
■ LX Platform interface allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
■ Real-time load/current data with billing-grade accuracy (+/- 1 percent)
■ Automated alerts help prevent overloads, power loss and downtime
■ Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities Broad Communications Compatibility
■ 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks Mounts Horizontally in 1U of Rack Space
■ Compatible with EIA-standard 19 in. 4-post racks and rack enclosures
■ Optional PDU4PKIT rail kit (sold separately) adds rear mounting support
