• Scalable capacity up to 60kVA (or 40kVA with N+1 fault tolerance)

• Economy mode option helps reduce operating and cooling costs

• Pre-installed WEBCARDLX network interface for 24/7 remote access

• DSP/IGBT technology and 1% output voltage regulation

• Includes 2 internal battery modules; supports 1 more

• For extended runtimes beyond those provided by internal battery modules, please review the suffix "0B" SV models without internal battery modules, which offer different external battery pack options.

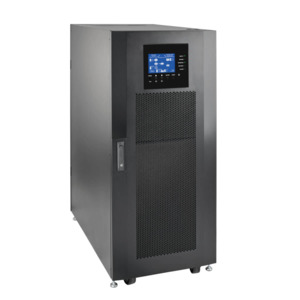

The SV40KS2P2B SmartOnline® SV Series 40kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems. The SV40KS2P2B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), two 20kVA SV20PM power modules and two SVBM battery modules. Space is included for one additional user-installable SV20PM power module and one SVBM internal battery module. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. With up to 92% efficiency in standard mode and up to 98% efficiency in optional economy mode, this 40kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting. 3-phase 40kVA UPS system offers network-grade power protection in a highly configurable, modular and scalable small-chassis rack-width frame. Included battery modules can support a half load up to 8 minutes.

■ SV40KS2P2B SmartOnline SV Series 40kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System
■ Pre-installed WEBCARDLX network interface
■ (2) SV20PM 20kVA power modules (shipped separately)
■ (2) SVBM battery modules (shipped separately)
■ Owner’s manual
