• Top side resistance measures 10^6 - 10^8 ohms
• Bottom side resistance measures less than 5x10e5 ohms
• Electricals are warranted for the lifetime of the mat
• Compliant to ANSI / ESDA S20.20
• Two layers; conductive bottom, dissipative top
• Static decay of .05 seconds
• Embossed surface
• UV additives provide color stability
• Comes with two 10mm female snaps installed on the corners of short side

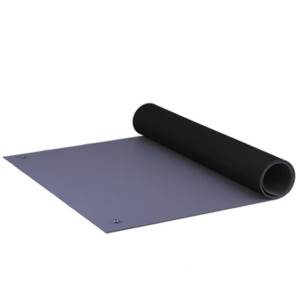

Dualmat is a 2-ply chemically cross-linked rubber material that is inherently dissipative on the top side and conductive on the bottom side. The material will not exudate, outgas, or lose its electrical properties. The soft textured surface offers comfortable protection against static discharge, parts slippage, and damage from UV lights. The durable material is resistant against solder, heat, and most common solvents.

Using no vinyl monomers or DOP, the Dualmat ensures conformity to personal and environmental safety standards. Fully compliant to REACH, Dualmat does not use candidates on the SvHC in its manufacture.
