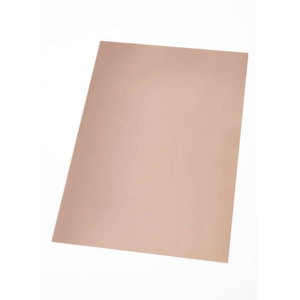

3M 7000008596 Thermally Conductive Heat Spreading Tape (TCoHST) 9876-10, 500 mm x 50 m
Our Part #10071596
Mfr Part #7000008596
3M
3M 7000008596 Thermally Conductive Heat Spreading Tape (TCoHST) 9876-10, 500 mm x 50 m
Our Part #10071596
Condition:NEW
Mfr Part #7000008596
$Roll
- Description
- Specifications
- Documents
3M™ Thermally Conductive and Heat Spreading Tape Series 9876 provides excellent heat spreading performance on plane direction for stimulation of quick heat dissipation with a preferential heat transfer path between heat generating components.
Generally, heat spreaders conduct to distribute thermal energy from a heat generating component to another location where the heat can be removed through a heat dissipation mechanism. Focused on increasing the X Y direction thermal conductivity to enhance heat spreading, 3M Tape 9876 is designated to solve the limitation of existing products. Standard Lead Time: 49 Calendar Days
Features:- Excellent thermal conductivity on plane direction ( >210-250 W/m-K)
- Excellent flexibility
- Selective thermal spreading path for uniform heat distribution
- Excellent electrical insulation
- High performance acrylic adhesive provides excellent adhesion to Aluminum and SUS
- Easy workability and handling (easy die-cut)
- Color: Brown
- Part Number: 9876-10
- Width: 19.69 in
Brand: 3M
Length: 50 m
Width: 19.69"
Color: Brown
Thickness: 0.1 mm
Adhesive Material: Acrylic
Alternate Product Number: 00051115526503-31196
Applications: Heat Spreading Sheet on FPD (Flat Panel Display) for Thin, Space Constrained Devices, LCD with LED BLU, PEP Module, OLED Module, Thermal Spreading/Conduction on Lighting, ECU, Solar Cell, 2nd Battery and Electrical Recharger Module, Heat Distribution on L
Backing Material: Copper
Dimensions: 500 mm x 50 m
Series: 9876 Series
