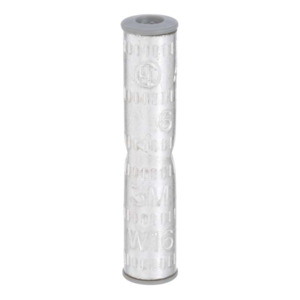

The 3M™ Scotchlok™ Connectors 20000 Series can be used with either copper or aluminum conductors. These aluminum connectors feature color coded end caps for identification. Contact aid provided in connector is compatible with poly/EPR insulations. Each connector is electro tin plated to resist electrolytic corrosion, and have a solid center stop. (UL 486B Listed)

Features:

• Standard barrel ensures reliable performance
• Built-in solid center oil stop
• Made of aluminum for good conductivity and has corrosion-resistant tin plating
• Rated up to 35 kV
• Meets ANSI C119.4 and RoHS 2011/65/EU Compliant
• Barrel has color stripes that help to indicate the wire range

• Color: Gray
• Connector Type: Compression
• For Use With: Aluminum or Copper Conductors
• Outside Diameter: 8.8 mm
• Part Number: 20001
