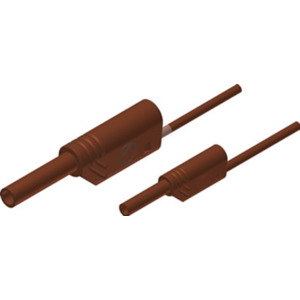

Safety measuring lead according to IEC 61010, one end with 2 mm safety plug and other end with 4 mm safety plug, as well as 2 mm and 4 mm socket for onward connection capability. Gold-plated / nickelplated copper beryllium contact spring. Highly flexible, double insulated stranded lead and shatter-proof grip sleeves. Built in colour indicator for easy identification of insulation damages.
Brand:Â Altech
Series:Â MAL Series
Alternate Product Number:Â MAL S WS 2-4 100/1
AC Voltage:Â 1000 V
Cable Material:Â PVC
Cable Type:Â LEH-XY
Color:Â Brown
Contacts:Â Spring Loaded Pin
Current Rating:Â 10 A
DC Voltage:Â 1000 V
Flammability Rating:Â UL 94 V-2
Housing Material:Â Polyamide
Length:Â 40 in.
Material:Â Nickel Plated Brass
Pin Size:Â 2 mm, 4 mm
Resistance: 21 MΩ
Safety Rating:Â CAT2
Style:Â Banana
Temperature Range: 5 - 158°F
Type:Â Test Lead
Wire Size AWG:Â 18 AWG
