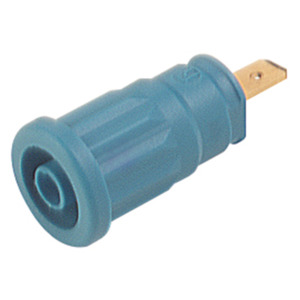

Altech 972361102 Test Socket, Blue, 4 mm, Press-in, Solder Tab, Gold Plated, 24 A, SEP Series
Our Part #10117833
Mfr Part #972361102
Altech
Altech 972361102 Test Socket, Blue, 4 mm, Press-in, Solder Tab, Gold Plated, 24 A, SEP Series
Our Part #10117833
Condition:New
Mfr Part #972361102
$EACH
Multiples of: 50
- Description
- Specifications
- Documents
Safety press-in socket, 4 mm diameter, contact-protected, with 4.8 x 0.8 tab connector complying with DIN 46 244, gold-plated brass. For rapid installation into switch panels with wall thicknesses between 1-10 mm. Installation hole: 12.2 +/- 0.1 mm diameter. Entry chamfer: 0.5 x 45 degree.
Brand:Â Altech
Type:Â Test Socket
Series:Â SEP Series
Alternate Product Number:Â SEP 2610
AC Voltage:Â 1000 V
Color:Â Blue
Connection:Â Flat Tab
Connector Type:Â Flat 4.8 x 0.8 mm tab
Contacts:Â Jack
Current Rating:Â 24 A
DC Voltage:Â 1000 V
Flammability Rating:Â UL 94 V-2
Housing Material:Â Polyamide
Material:Â Gold Plated Brass
Mounting Type:Â Press in
Pin Size:Â 2 mm
Resistance: 5 MΩ
Safety Rating:Â CAT3
Temperature Range: -40 - 176°F
Terminal Type:Â Solder
