• Proven ABSOLUTE sensor.
• Rated to IP66 water- and dust-proofing standard, and oil resistance improved.
• Slim body design is advantageous for multi-point measurements.
• Improvement in workability with the LCD readoutrotation function.
• Back plunger design (ID-B).
• Built-in tolerance judgment function.
• Switchable resolution.
• Waterproof data output connector.
• Built-in hold/preset function.

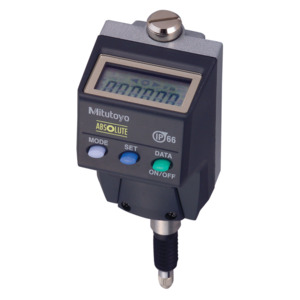

The Mitutoyo ABS ID-B Series digital indicator features a back-plunger style body that rotates up to 180 degrees for taking measurements from different directions. The body mounts to a leveling machine tool table or inspection jigs and its slim design allows for use in restricted spaces where graduations of standard gages are difficult to read. The ID-B indicator measures linear distances up to 5mm (metric only) or 5.6mm/.22” (Inch/Metric models), and some models a selectable resolution with accuracy of up to +/-0.003mm/.00012”.

■ Available in Metric and Inch/Metric models
■ Available with SPC output capabilities
■ Signal can be outputted to an external device; waterproof data output connector protects against dust, water and oil ingress
■ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
■ Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
■ SPC output function allows for quick and easy data management in real time
■ Functions include: Zero-setting, presetting, direction switching, tolerance judgment, display hold, data output, resolution switching, and inch/mm conversion (on inch/metric models only)
■ Alarm: Low voltage, counting value composition error, over-flow error and tolerance limit setting error
■ Unlimited response speed eliminates over-speed errors
■ Sealed housing meets IP66 rating for improved protection against water, dust, oil and water jets
■ Supplied in a fitted plastic case
■ .0005, .00005"/0.001, 0.01mm resolution
