• Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
• Member of the Plug & Test family of interchangeable sensors and indicators (adapter required)
• Measure tension and compression force
• NIST-traceable certificate of calibration with data is included
• Warranty: 3 years

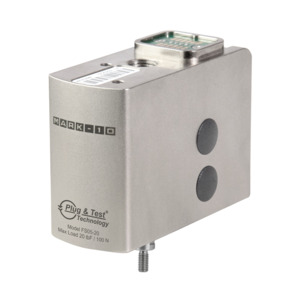

Series FS05 force sensors measure tension and compression forces. They mount directly to the crosshead of models F105, F305, F505, and F505H test frames, for a clean, integrated look.

With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter: AC1083 required ). Ranges available from 0.12 to 500 lbF [0.5 N to 2.5 kN].

Note: An AC1083 adapter is required to use FS05 force sensors with the following test frames: F755, F755S, F1505, and F1505S.
