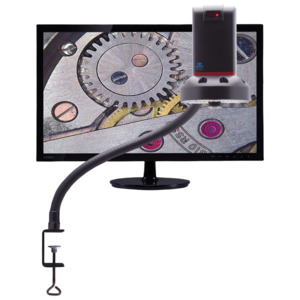

This innovative digital microscope features built-in HDMI and USB outputs with 4x objective lens, and allows operators to view images on a monitor, or on a PC utilizing advanced measurement and imaging software. Save images directly to a MicroSD card in HDMI mode, or to your computer in PC mode.

• 13x - 140 x magnification (based on a 24" monitor)
• Working Distance: 0.86 inch - 8.42 inch
• MicroSD Card Slot for saving image and video files
• Dual Viewing modes: HDMI and Windows PC
• Focus: manual or auto
• PC software features include file capture, measurement, calibration, annotation, and more.
• 22" HD Monitor Included

Includes the Cyclops stand with fine focus adjustment, 4x objective lens, and the Cyclops IR remote control.

Dual Viewing Modes
This innovative digital microscope connects directly to a HD monitor as well as to a computer, or both simultaneously. Magnification ranges up to 140x. Image capture software provided with Cyclops includes measurement and editing tools. For PC Cam use, the software offers Compare mode, Measurement mode and Device Control mode. This breakthrough instrument increases accuracy and productivity while easing eye strain and user fatigue ‚ valuable benefits in high-volume applications, such as parts inspection in assembly operations.

Adjustable Illumination
LED illumination with adjustable intensity controls give operators a variety of lighting options for their applications.

IR Remote
Control the Cyclops' features such as focus and lighting with the infrared remote control.

Advanced Imaging Software
Save high resolution images and videos directly to SD card with the press of a button. View the files on-screen, or transfer the files to your PC to share with collaborators.

FlexArm Stand with Table Clamp
The FlexArm stand is designed to be flexed and positioned whereever viewing is required. 22 inch length offers optimal reach, and the 360 ball joint ensures the Cyclops 4K can be tilted to the required angle.

Optional Lenses
The Cyclops 4K can be enhanced with optional objective lenses to suit your specific requirements.

• 10x Objective Lens: Provides additional magnification up to 506x
• 4x Lens with Polarizer: Helps to reduce glare from reflective parts
• 4x Long Focus Lens: Increases the working distance of the Cyclops to 95mm - 218mm
