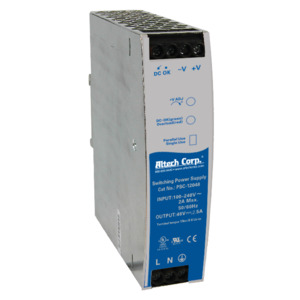

Altech PSC-12048 Power Supply, DinRail, 120W, 2.5A, 85-264VAC In, 48VDC Out, Comp.PFC, PSC Series
Our Part #10154764
Mfr Part #PSC-12048
Altech PSC-12048 Power Supply, DinRail, 120W, 2.5A, 85-264VAC In, 48VDC Out, Comp.PFC, PSC Series
Our Part #10154764
Condition:New
Mfr Part #PSC-12048
$164.48EACH
Condition:New
- Description
- Specifications
- Documents
- Universal AC input range(85-264Vac)
- Support 1+1 or N+1 redundant system (suggest to use redundancy modules.)
- Built-in active PFC,PF>0.95
- High Efficiency up to 92%
- Built-in current sharing function
- Built-in current limiting circuit
- Output protections: OVP/OLP/SCP/OTP
- Wide operating ambient temp (-25C-70C)
- 150% peak load capacity
- Easy Fuse Tripping due to High Overload Current
- Excellent Partial Load Efficiency
- Built-in DC OK relay contact
- Can be installed on 35 mm DIN rail
- 100% full load burn-in test
- PCB with conformal coating
- Suitable for critical applications
- Ultra-slim, 32mm width
- 3 year warranty
Brand: Altech
Output Voltage: 48 V
Output Current: 2.5 A
Power Rating: 120 W
Input Voltage: 85-264 VAC
Number of Outputs: Single Output
Series: PSC Series
Special Features: PFC
Type: Ultra Compact Power Supply
$164.48EACH
