Tempo Communications
Tempo Communications

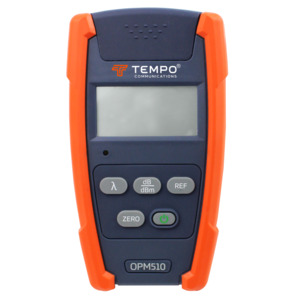

Tempo Communications OPM510 Optical Power Meter, LCD Display, IP54, Connectors FC/LC/SC/ST, IP54

Our Part #10154800

Mfr Part #OPM510

Tempo Communications OPM510
Tempo Communications
Tempo Communications

Tempo Communications OPM510 Optical Power Meter, LCD Display, IP54, Connectors FC/LC/SC/ST, IP54

Our Part #10154800

Condition:New

Mfr Part #OPM510

$EACH
  • Standard and High Power Optical Power Meters
  • Measure Optical Power Level of Light in Fiber Optics
  • Accurate Insertion Loss Measurements
  • Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz
  • Absolute or Referenced Optical Power Measurements
  • InGaAs detector for Maximum Sensitivity
  • Calibrated Wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm
  • SC, LC, FC and ST Interchangeable Bulkheads
  • Ruggedized Package, IP54 compliant
  • Compatible with Singlemode and Multimode Fiber Networks
  • Auto Off or Continuous On Operation
  • Battery or 120/240VAC Operation

Count on Tempo Communications Optical Power Meters (OPM510/520) to test and maintain your fiber optic networks.

Use to accurately ensure that signals are being transmitted at the correct power levels in your fiber network. The OPM 510 and 520 are available in standard and high-power versions for the Telco and MSO markets.

The optical power meter can measure both the absolute power level and the relative power level of light in the fiber. Absolute and referenced power measurements ensure fast and accurate loss budget and insertion loss measurements. Absolute power measurements are used to ensure that the system is operating within a specified power range, while referenced, or relative, power measurements are used to detect changes in the power level caused by various factors such as attenuation, dispersion, and reflection.

When placing tones on the fiber using a Tempo Communications source, the optical power meter will definitively identify fiber optic cables. The rugged, IP54-compliant package provides confidence when testing singlemode and multimode networks. See Models tab for options and available OPM Adapter.

Brand: Tempo Communications
Battery Life: >70 hrs.
Certifications: CE, FCC
Connector Type: SC (Interchangeable LC, ST, FC)
Dimensions: 6.1 x 3.5 x 1.3"
Display Type: LCD
IP Rating: IP54
Operating Temperature: -10 to 50°C
Power Supply: 9V 1000mAh Lithium Battery/ 9V AC adapter
Product Type: Fiber Optic Meters & Analyzers
Resolution: 0.01 dB
Storage Temperature: -20 to 70°C
Wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm
