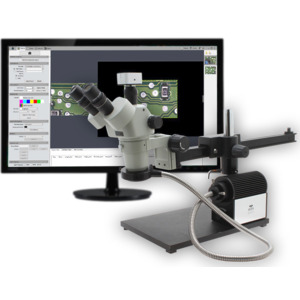

The ideal inspection system for viewing parts with a large surface area. Featuring Aven's Ultra-Glide Boom Stand, operators can smoothly glide the boom along it's 23-inch reach. This system also includes Aven's SPZHT-135 Stereo Zoom Microscope with 10x eyepieces (21x - 135x magnification) and Fiber Optic Illuminator (FOI). The FOI system is fanless, and designed to reduce distracting noise. This system also features Aven's Mighty Cam 3.0 USB Camera with measurement software.

Aven's Ultra-Glide Boom Stand System is ideal for inspecting parts over a large surface area. The ultra-glide boom stand provides smooth motion along its 23" arm, allowing for easy scanning. The stand features a 13.5-inch post with a safety collar and a heavy 10.5 x 15-inch base. This system features Aven's SPZHT-135 Stereo Zoom Microscope. This microscope offers an optical magnification range of 21x-135x.

The ideal scope for a wide range of investigative/inspection applications, Aven's dynamic new microscope SPZH-135 extends the boundaries of stereo zoom microscopy, employing standard 15X eyepieces to achieve 21x to 135x continuous zoom magnification all the while providing a continuous working distance of 3.3" (84mm). Replacing the standard 15X eyepieces with our DHW20X eyepieces enhances the magnification range of this dynamic new microscope further - 28X to 180X. Having eyepieces set at a 45-degree angle, the adjustable interpupillary distance between eyepieces of 1.96" (50mm) to 2.91" (74mm) means they can be set to the comfort level of any user.

• Total Magnification of 21X to 135X at 3.3" (84mm) working distance, Max 180X with 20X eyepieces
• Click stop zoom adjustments for accurate, repeatable measurement
• Standard High Eye Point wide field 15x eyepieces at 45 degrees for comfortable viewing even for operators with eyeglasses
• Diopter adjustment on both eyepiece tubes
• Adjustable Interpupillary Distance of 1.96" (50mm) to 2.91" (74MM) accommodates any operator
• Multi-coated optical components, free from chromatic and spherical aberration
• One touch fine focus adjust trinocular camera port for quick, easy camera focusing and parfocaling the scope

MIGHTY CAM 3.0 USB Camera

Aven's Mighty Cam is equipped with a 6-megapixel sensor and a USB 3.0 output, providing stunning, true-to-life images with minimal lag time. The included software provides an easy-to-use, yet sophisticated interface for saving high-resolution images, writing annotations, generating reports, and accurate measurements. This user-friendly interface is ideal for saving critical data and sharing information.

• USB 6M CMOS Camera with Imaging Software
• Professional Sony 6M CMOS Sensor (3072(H) x 2048(V))
• Easy Plug and Play USB 3.0 Interface
• Compact and Light Weight
• Versatile C/CS lenses mount
• Save high-resolution image files
• Create large panoramic images with real-time stitching feature
• Calibrate accurate measurements
• Adjust the depth of field in real-time

Ultra-Glide Boom Stand

The smooth motion of the gliding arm allows the microscope to easily scan across the subject. Features two locking knobs to adjust the horizontal and vertical position of the gliding arm. A heavy metal base provides excellent stability and a safety collar on the support post provides added protection for your inspection system.

• 23-inch gliding arm provides smooth horizontal movement
• Allows positioning of microscopes over a large area.
• Heavy duty all metal construction13.5 inch post with a safety collar
• Heavy 15 x 10.5-inch base assures stability and space

FOI Illuminator

Aven's 26200A-310 Fiber Optic Illuminator is compatible with most fiber optic cables and guides. A versatile illumination source, this device easily adapts to your specific application. Users can choose from single and dual pipe guides, as well as annular ring lights and much more. The 26200A-310 contains a 24-watt LED lamp, outputs a color temperature of 5600K, and has an expected lamp life of 10,000 hours.
