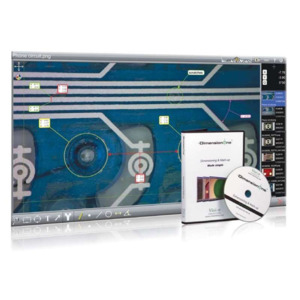

Vision Engineering VIS003 DimensionOne Software

The Vision Engineering VIS003 is a simplified image capture and dimensioning software where all of the necessary content has been refined to provide ultimate ease of use. DimensionOne software can be used with Mantis Elite-Cam, Lynx systems, and many other stereo microscopes in the Vision Engineering range. DimensionOne is ideal for the simple measurement of a subject’s features and for adding annotations to captured images. Use it to quickly check the conformity of inbound parts, manufactured items or finished parts without delaying other processes. can capture an image with a click of the mouse, or a touch of the screen - it’s that simple! The simplified design allows maximum emphasis on the live and captured image, making mark-up easier and clearer. Adding annotation text could not be easier. DimensionOne has one simple font and a palette of colors, ensuring maximum contrast can be obtained between the captured image and text. Onscreen dimensioning can be performed on any captured image to measure circles, lines, points, angles and distances. Additionally, there is a range of powerful dimensioning tools available including creating intersections of lines, or bolt circles etc.

Vision Engineering VIS003 Features:

• Image capture and annotation software, with onscreen dimensioning
• Ultimate ease of use, ‘menuless’ with large icons
• Easy output to email, print or file
• Multi-lingual; available in all major language

Vision Engineering VIS003 Specifications:

• Brand: Vision Engineering
• Series: Mantis 3rd Gen
