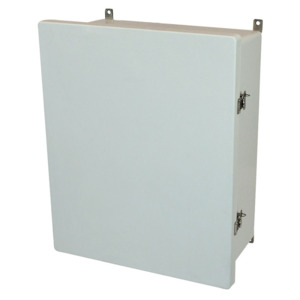

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover. Note: The cover latching design as of June 26th, 2017 will be changing from 4 to 2 latches and has been properly tested to achieve NEMA 4X ratings!
Enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
Brand:Â Allied Moulded Products
Color:Â Gray
Cover:Â Opaque
Depth:Â 8.01"
Height:Â 20"
Material:Â Fiberglass
Mounting Type:Â Stainless steel feet fastened to back side brass inserts
NEMA Rating:Â 4X
Series:Â AM-R Series
Type:Â JIC Size
Width:Â 16"
