Mueller Electric

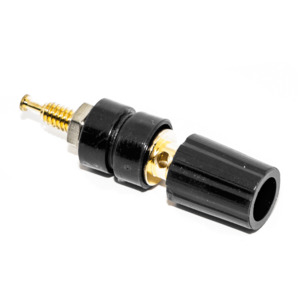

Mueller Electric BU-P3770-0 Binding Posts, Gold-plated Tellurium, 15 Amps, Panel Mount, Black, 1.78" OAL
Our Part #10179482
Mfr Part #BU-P3770-0
Mueller Electric
Mueller Electric BU-P3770-0 Binding Posts, Gold-plated Tellurium, 15 Amps, Panel Mount, Black, 1.78" OAL
Our Part #10179482
Condition:New
Mfr Part #BU-P3770-0
$EACH
- Description
- Specifications
- Documents
- Overall length 1.78" (45.2mm), OD = 0.44" (11.2mm)
- Mounting - Mount thru panels between 0.70" and 0.25" thick with a Ø0.375" (9.52mm) hole
- Material - Nickel-plated brass (Contacts), Polycarbonate (Insulators)
- Voltage - Hands-free testing up to 2500 VRMS
- RoHS 3 compliant
The BU-P3770 is a panel mount, gold-plated tellurium binding post that is compatible with all unshrouded and retractable 4mm banana plugs. Mounts through panels between 0.070" and 0.25" thick.
Brand:Â Mueller Electric
Type:Â Connectors
Series:Â BU-3770 Series
Amps:Â 15
Color:Â Black
Connection:Â Banana Jack to Banana, Solder
Cover:Â Polycarbonate
Dimensions:Â 1.78 x 0.44 x 0.44"
Insulation:Â Polycarbonate
Material:Â Gold Plated Tellurium
Number of Connections:Â 2
Overall Length:Â 1.78"
Product Type:Â Binding Posts
RoHS Compliance:Â Yes
Temperature Range: -50-115°C
$EACH
