Molex 1R4000A20A120 Receptacle, Mini-Change A-Size, 4P, Female to 16/1 AWG, 0.305m, 130013 Series

Mini-Change A-Size (7/8"-M22) Receptacle, 4 Poles, 1/2" - 14 NPT, Female (Straight) to 16/1 AWG Leads, 0.305m (1.0') Length

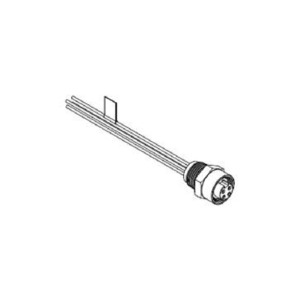

The Molex 1300130286 Mini‑Change A‑Size Receptacle (130013 Series) is a 4‑pole, single‑ended female receptacle with pigtail leads. It supports up to 10.0A per contact and 600V AC/DC, and features an internal thread coupling with a single keyway. The unit includes 0.305 m (1.0 ft) of 16 AWG UL 1015 leads, a 1/2"-14 NPT front panel mount, and a straight orientation. It is constructed from nickel‑plated zinc die‑cast, operates over a ‑20℃ to +105℃ temperature range, and has a net weight of 55.126 g.
