HellermannTyton 133-03188 Tube and Pipe Clip, 3 x 4.7 - 5.1 mm Diameter, PA66HIRHSUV, Black
Our Part #10216441
Mfr Part #133-03188
HellermannTyton 133-03188 Tube and Pipe Clip, 3 x 4.7 - 5.1 mm Diameter, PA66HIRHSUV, Black
Our Part #10216441
Condition:New
Mfr Part #133-03188
RoHS
$0.70EACH
Multiples of: 4,000
Condition:New
RoHS
- Description
- Specifications
- Documents

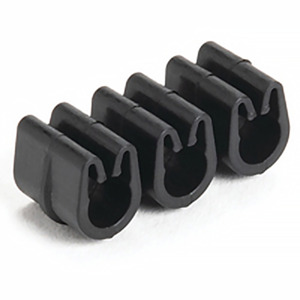

- Triple pipe clip secures three routings together while keeping them separated, to prevent chafing or heat transfer
- Inverted retaining legs and narrow opening prevent inadvertent disengagement of pipe
- Controlled flex and angled entry promote easy pipe installation
This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses.
Brand: HellermannTyton
Type: Tube and Pipe Clips
Alternate Product Number: PC5X3
Color: Black
Flammability Rating: UL 94 HB
Height: 0.38"
Length: 1.03"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40°F to +230°F (-40°C to +110°C)
RoHS Compliance: Yes
Series: PC-Series
Tensile Strength: 20 lb./in.
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 0.4"
$0.70EACH
Multiples of: 4,000
