HellermannTyton

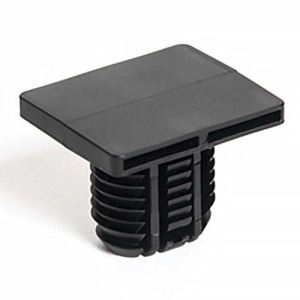

HellermannTyton 133-03691 Push Pin with Oval Fir Tree, 12 x 17mm Oval Hole Dia, PA66HIRHSUV, Black
Our Part #10216444
Mfr Part #133-03691
HellermannTyton
HellermannTyton 133-03691 Push Pin with Oval Fir Tree, 12 x 17mm Oval Hole Dia, PA66HIRHSUV, Black
Our Part #10216444
Condition:New
Mfr Part #133-03691
RoHS
$0.74EACH
Multiples of: 2,000
Condition:New
RoHS
- Description
- Specifications
- Documents
- Heavy duty push pin with 12x17mm fir tree provides low insertion effort yet delivers exceptional retention strength in a 12x17mm slotted hole.
- Oval fir tree prevents rotation.
- Wide, flat top provides an ergonomically friendly surface for easy installation.
- Long fir tree to fasten channel, bracket or clamp to panel surface.
Push pins allow the fastening of multiple parts together with a simple press of the thumb.
Brand: HellermannTyton
Type: Push Pins
Alternate Product Number: 12x17PUSHPIN
Color: Black
Flammability Rating: UL 94 HB
Halogen Content: Yes
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Type: Push Mount
Operating Temperature Range: -40°F to +221°F (-40°C to +105°C)
RoHS Compliance: No
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
$0.74EACH
Multiples of: 2,000
