$0.14EACH
Multiples of: 4,000
Condition:New
RoHS
- Description
- Specifications
- Documents
- Clip can be installed by hand – no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.

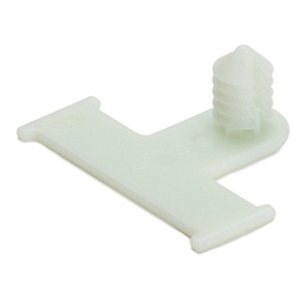

Bundling Clip, Standoffs provide a straightforward way to secure cable bundles, hoses or pipes. The bundle fastens to the tape bar using tape or cable ties. Multiple orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standoff keeps bundles away from mounting area to prevent them from damage due to rubbing.
Brand: HellermannTyton
Type: Bundling Clips
Alternate Product Number: SOC9FT6
Color: Natural
Flammability Rating: UL 94 HB
Height: 0.47"
Length: 1.4"
Material: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Mounting Hole Diameter: 0.24 - 0.27"
Operating Temperature Range: -40°F to +230°F (-40°C to +110°C)
RoHS Compliance: Yes
Thickness: 0.02" - 0.24"
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 1.1"
$0.14EACH
Multiples of: 4,000
