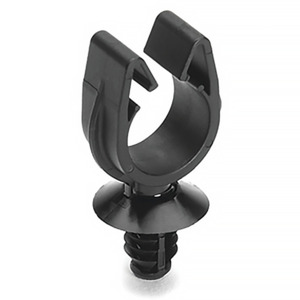

HellermannTyton 151-01768 MOC Clip, 14 mm, with 6.5mm Fir Tree, PA66HIRHSUV, Black
Our Part #10216749
Mfr Part #151-01768
HellermannTyton
HellermannTyton 151-01768 MOC Clip, 14 mm, with 6.5mm Fir Tree, PA66HIRHSUV, Black
Our Part #10216749
Condition:New
Mfr Part #151-01768
RoHS
$EACH
Multiples of: 3,000
RoHS
- Description
- Specifications
- Documents
- Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Fir tree demonstrates easy insertion with high extraction resistance.
The MOC with Round Fir Tree features HellermannTyton's unique retention clip with an integrated fir tree to fit securely in a 6.5 (+/-0.4) mm hole. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point against a panel.
Brand:Â HellermannTyton
Type:Â MOC Clips with Fir Tree
Alternate Product Number:Â MOC14FT6.5
Bundle Diameter:Â 0.51" Min | 0.62" Max
Color:Â Black
Depth:Â 0.39"
Flammability Rating:Â UL 94 HB
Halogen Content:Â Yes
Height:Â 1.55"
Length:Â 0.82"
Material:Â Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter:Â 0.24 - 0.27"
Operating Temperature Range: -40°F to +230°F (-40°C to +110°C)
RoHS Compliance:Â Yes
Thickness:Â 0.02" - 0.22"
Typical Use:Â For Indoor and Outdoor Use
UV Stablized:Â Yes
