HellermannTyton
HellermannTyton 151-02083 MOC Clip, 5 mm, with 6.5mm Fir Tree, PA66HIRHSUV, Black
Our Part #10216894
Mfr Part #151-02083
HellermannTyton
HellermannTyton 151-02083 MOC Clip, 5 mm, with 6.5mm Fir Tree, PA66HIRHSUV, Black
Our Part #10216894
Condition:New
Mfr Part #151-02083
RoHS
$0.22EACH
Multiples of: 5,000
RoHS
- Description
- Specifications
- Documents
- Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Fir tree demonstrates easy insertion with high extraction resistance.

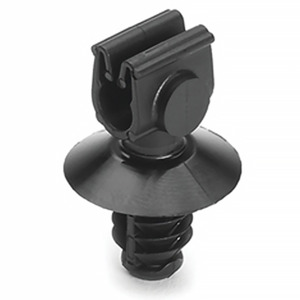

The MOC with Round Fir Tree features HellermannTyton's unique retention clip with an integrated fir tree to fit securely in a 6.5 (+/-0.4) mm hole. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point against a panel.
Brand: HellermannTyton
Type: MOC Clips with Fir Tree
Alternate Product Number: MOC5FT6.5
Bundle Diameter: 0.16" Min | 0.22" Max
Color: Black
Depth: 0.39"
Flammability Rating: UL 94 HB
Halogen Content: Yes
Height: 1.04"
Length: 0.67"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter: 0.24 - 0.27"
Operating Temperature Range: -40°F to +230°F (-40°C to +110°C)
RoHS Compliance: Yes
Thickness: 0.02" - 0.22"
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
$0.22EACH
Multiples of: 5,000
