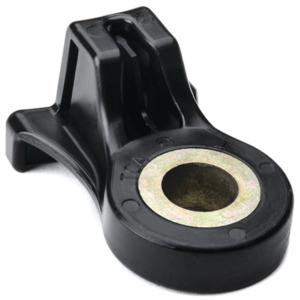

HellermannTyton 151-02102 Cable Tie Mount, Axial, 0.405" Hole, PA66HIRHSUV, Blk, SA-Series, 500/Pkg
Our Part #10216900
Mfr Part #151-02102
HellermannTyton
HellermannTyton 151-02102 Cable Tie Mount, Axial, 0.405" Hole, PA66HIRHSUV, Blk, SA-Series, 500/Pkg
Our Part #10216900
Condition:New
Mfr Part #151-02102
RoHS
$3.42EACH
Multiples of: 500
RoHS
- Description
- Specifications
- Documents
- Positions bundles off cross members and frame rails to prevent abrasion and chafing.
- Metal insert bushing accommodates high-torque installation.
- Made with high-impact, heat stabilized, and UV material ideal for trucking and heavy equipment environments.
HellermannTyton’s axial oval mount stands off bundles from frame rails and cross members to prevent them from rubbing and chafing. The axial oval mount accommodates cable ties up to 0.5" wide. The hole on the mount was designed to fit a 5/16" bolt.
Brand: HellermannTyton
Type: Axial Mount
Package Quantity: 500 Per Pkg.
Series: SA-Series
Alternate Product Number: SAM400B-R
Color: Black
Flammability Rating: UL 94 HB
Height: 1.77"
Length: 1.18 yd.
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Maximum Torque: 114. lbf-ft
Mounting Hole Diameter: 0.405"
Mounting Type: Axial
Operating Temperature Range: -40 to 221°F
RoHS Compliance: Yes
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 0.98"
