HellermannTyton 156-00157
HellermannTyton

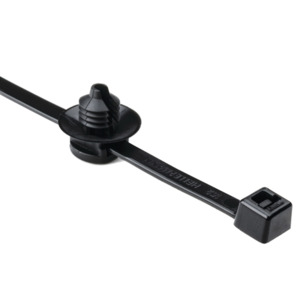

HellermannTyton 156-00157 Cable Tie, 2 Piece, Fir Tree Mount, 8"L, PA66/HIRHS, Black, 500/Pkg

Our Part #10217079

Condition:New

Mfr Part #156-00157

RoHS
$0.29Each-EA
Multiples of: 500
  • Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation. Fir tree provides low insertion effort yet demonstrates high extraction resistance. Disc feature prevents rattling in high-vibration applications and protects against debris ingress.

HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.

BrandHellermannTyton
TypePush-Mount & Screw-Mount Cable Ties
ColorBlack
Package Quantity500 Per Pkg.
Alternate Product NumberT50RFT6
Bundle Diameter0.06" Min | 2.0" Max
Closure Typeplastic pawl
Flammability RatingUL 94 HB
For Use With104-10010;110-05005;110-07000;110-07100;110-07101;110-70083;110-70084;110-70130;110-80000;110-80001
Height0.05"
Length8"
MaterialPolyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Mounting Hole Diameter0.25 - 0.28"
Operating Temperature Range-40 to +221°F
RoHS ComplianceYes
Style2-Piece Tie Assemblies
Tensile Strength50 lb./in.
Thickness0.03 - 0.12"
Tooth TypeInside Serrated
Typical UseFor Indoor Use Only
UV StablizedNo
Width0.18"
