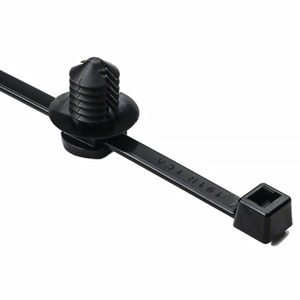

HellermannTyton 156-00378 Cable Tie, Fir Tree Mount, 15"L, 0.30-0.31" Hole, PA66HIRHS, Blk, 500/Pkg
Our Part #10217087
Mfr Part #156-00378
HellermannTyton
HellermannTyton 156-00378 Cable Tie, Fir Tree Mount, 15"L, 0.30-0.31" Hole, PA66HIRHS, Blk, 500/Pkg
Our Part #10217087
Condition:New
Mfr Part #156-00378
RoHS
$0.78EACH
Multiples of: 500
RoHS
- Description
- Specifications
- Documents
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation. Fir tree provides low insertion effort yet demonstrates high extraction resistance. Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
Brand: HellermannTyton
Type: Push-Mount & Screw-Mount Cable Ties
Package Quantity: 500 Per Pkg.
Alternate Product Number: T50LFT8
Bundle Diameter: 0.16" Min | 4.2" Max
Closure Type: plastic pawl
Color: Black
Flammability Rating: UL 94 HB
For Use With: 104-10010;110-05005;110-07000;110-07100;110-07101;110-70083;110-70084;110-70130;110-80000;110-80001
Height: 0.05"
Length: 15"
Locking Type: Self-Locking (Standard)
Material: Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Mounting Hole Diameter: 0.3-0.31"
Operating Temperature Range: -40 to 230°F
RoHS Compliance: Yes
Style: 2-Piece Tie Assemblies
Tensile Strength: 50 lb.
Thickness: 0.03 - 0.20"
Tie Length: 13-18 Inches
Tooth Type: Inside Serrated
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.19"
