HellermannTyton
HellermannTyton

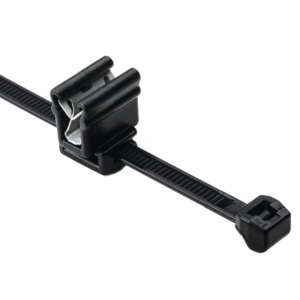

HellermannTyton 156-00858 Cable Tie, Edge Clip, 6"Lx0.18"W, PA66/HIRHS, Black, 500/Pkg, EC-Series

Our Part #10217120

Mfr Part #156-00858

HellermannTyton 156-00858
HellermannTyton
HellermannTyton

HellermannTyton 156-00858 Cable Tie, Edge Clip, 6"Lx0.18"W, PA66/HIRHS, Black, 500/Pkg, EC-Series

Our Part #10217120

Condition:New

Mfr Part #156-00858

RoHS
$0.98EACH
Multiples of: 500
RoHS
  • Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole. Edge Clip provides low insertion force and high extraction force ideal for assembly environments. Two piece assembly allows the mount to slide along the strap ensuring proper orientation. Cable tie is outside serrated to reduce bundle chafing.

HellermannTyton's Two Piece Edge Clip with Cable Tie Assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mountinig hole. The clip is easy to secure and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.

BrandHellermannTyton
TypePush-Mount & Screw-Mount Cable Ties
Package Quantity500 Per Pkg.
SeriesEC-Series
Alternate Product NumberT50SOSEC4A
Bundle Diameter0.20" Min | 1.4" Max
ColorBlack
Flammability RatingUL 94 HB
For Use With104-10010;110-05005;110-07000;110-07100;110-07101;110-70083;110-70084;110-70130;110-80000;110-80001
Height0.5"
Length6"
MaterialPolyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Operating Temperature Range-40 to +221;-40 to +230°F
RoHS ComplianceYes
Tensile Strength50 lb.
Thickness0.04 - 0.12"
Tie Length04 -08 Inches
Tooth TypeOutside Serrated
Typical UseFor Indoor Use Only
UV StablizedNo
Width0.18"
$0.98EACH
Multiples of: 500
