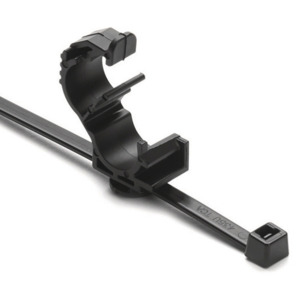

HellermannTyton 156-01289 Cable Tie, 0.93"x0.47", PA66/HIRHSUV, Black, 1000/Ctn, LOC Series
Our Part #10217147
Mfr Part #156-01289
HellermannTyton 156-01289 Cable Tie, 0.93"x0.47", PA66/HIRHSUV, Black, 1000/Ctn, LOC Series
Our Part #10217147
Condition:New
Mfr Part #156-01289
RoHS
$0.42EACH
Multiples of: 1,000
Condition:New
RoHS
- Description
- Specifications
- Documents
- The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.
- Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing, but is significant enough to allow for manual disengagement if service is needed.
- The cable tie portion of this two-piece design allows for two wire bundles to be routed with the same piece.
The Locking Clip creates a full and secure lock completely around a wire bundle ranging from 10-14mm. The fixating fir tree on this clip allows for the clip to be secured into a panel by a 6mm round hole.
Brand: HellermannTyton
Type: Outdoor Cable Ties
Package Quantity: 1000 Per Pkg.
Series: LOC Series
Alternate Product Number: T50RLOC5-9-SET
Bundle Diameter: 0.20" Min | 0.35" Max
Closure Type: plastic pawl
Color: Black
Depth: 0.47"
Flammability Rating: UL 94 HB
Halogen Content: No
Height: 0.93"
Length: 0.93"
Locking Style: Self-Locking (Standard)
Material: Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40 to 230°F
RoHS Compliance: Yes
Tensile Strength: 50 lb.
Tie Length: <4 Inches
Tooth Type: Inside Serrated
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 0.47"
$0.42EACH
Multiples of: 1,000
