HellermannTyton
HellermannTyton

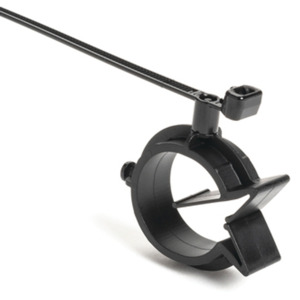

HellermannTyton 156-01344 Cable Tie, Pipe Clip, 8.27"x0.19", PA66/HIRHS, Black, 250/Pkg

Our Part #10217156

Mfr Part #156-01344

HellermannTyton 156-01344
HellermannTyton
HellermannTyton

HellermannTyton 156-01344 Cable Tie, Pipe Clip, 8.27"x0.19", PA66/HIRHS, Black, 250/Pkg

Our Part #10217156

Condition:New

Mfr Part #156-01344

$EACH
Multiples of: 250
  • Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point. 2-piece design allows installer to slide clip around cable tie to obtain optimum orientation Clip is reusable, making relocation or adjustments simple

HellermannTyton’s 2-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.

Brand: HellermannTyton
Type: Pipe Clip (2-Piece)
Package Quantity: 250 Per Pkg.
Alternate Product Number: T50SMVCOC25-31
Bundle Diameter: 0.08" Min | 1.97" Max
Color: Black
Flammability Rating: UL 94 HB
For Use With: 104-10010;110-05005;110-07000;110-07100;110-07101;110-70083;110-70084;110-70130;110-80000;110-80001
Height: 0.25"
Length: 8.9"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Type: Stud Mount
Operating Temperature Range: -40 to +221°F
RoHS Compliance: Yes
Tensile Strength: 50 lb.
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.7"
$EACH
Multiples of: 250
