- Robust fir tree design provides low insertion effort yet delivers exceptional retention strength in a 12 mm hole, for ease of use and reliable performance.
- Heavy duty T120 tie provides a 120lb (534 N) tensile strength to secure bundles up to 4" (104 mm).
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- PA46 nylon material provides great performance at up to 135°F continuous operating temperature.

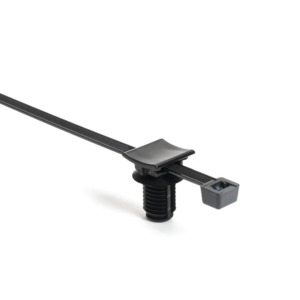

These two-piece fasteners offer a simple and versatile method of bundling and mounting cables. Sold as an unassembled set, this oval fir tree and tie combination allows the user to install the tie in two different directions, securing the bundle perpendicular or inline to the oval mounting hole.
Brand:Â HellermannTyton
Type:Â Fir Tree Mount
Package Quantity:Â 1000 Per Pkg.
Alternate Product Number:Â T120SFT12SET
Bundle Diameter:Â 0.20" Min | 2.17" Max
Closure Type:Â plastic pawl
Color:Â Black
Flammability Rating:Â UL 94 HB
Length:Â 8.9"
Locking Type:Â Releasable
Material:Â Polyamide 6.6, high impact modified, heat and UV-stabilized (PA66HIRHSUV)
Mounting Hole Diameter:Â 0.46 - 0.49"
Operating Temperature Range: -40°F to +230°F (-40°C to +110°C)
RoHS Compliance:Â Yes
Style:Â Unassembled
Tensile Strength:Â 250 lb.
Tooth Type:Â Inside Serrated
Typical Use:Â For Indoor and Outdoor Use
Width:Â 0.50"
