HellermannTyton
HellermannTyton

HellermannTyton 156-01792 MOC Clip, Assembled, 8.3"L, PA66, Black, 1000/Ctn, MOC Series

Our Part #10217204

Mfr Part #156-01792

HellermannTyton 156-01792
HellermannTyton
HellermannTyton

HellermannTyton 156-01792 MOC Clip, Assembled, 8.3"L, PA66, Black, 1000/Ctn, MOC Series

Our Part #10217204

Condition:New

Mfr Part #156-01792

RoHS
$EACH
Multiples of: 1,000
RoHS
  • Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement. Controlled flex and angled entry promote easy installation. Independent rotation allows for adjustable routing orientation. Cable tie accommodates wide range of secondary bundle sizes.

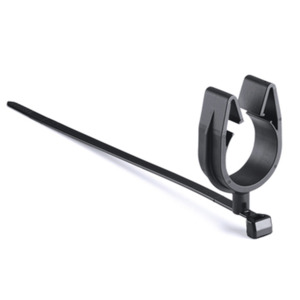

The MOC 180 to Swivel Tie is a rotatable routing clip coupled to a cable tie that keeps two routings secured and separated. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness. The clip's orientation allows the second routing to be assembled in the direction of the first routing. The swivel coupler allows the two routings to rotate independently of each other.

Brand: HellermannTyton
Type: MOC Clip
Package Quantity: 1000 Per Pkg.
Alternate Product Number: T50SMVCMOC26M180
Series: MOC Series
Bundle Diameter: 0.91" Min | 1.14" Max
Color: Black
Depth: 0.47"
Flammability Rating: UL 94 HB
Halogen Content: Yes
Height: 0.9"
Length: 9"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40 to +230°F
RoHS Compliance: Yes
Style: Assembled
Tensile Strength: 120 lb.
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 0.3"
$EACH
Multiples of: 1,000
