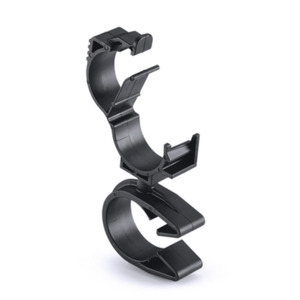

HellermannTyton 156-01895 LOC Locking Clamp, 15 - 19 mm, to MOC Clip, 22 mm, PA66HIRHSUV, Black
Our Part #10217254
Mfr Part #156-01895
HellermannTyton
HellermannTyton 156-01895 LOC Locking Clamp, 15 - 19 mm, to MOC Clip, 22 mm, PA66HIRHSUV, Black
Our Part #10217254
Condition:New
Mfr Part #156-01895
RoHS
$EACH
Multiples of: 1,000
RoHS
- Description
- Specifications
- Documents
- Patented retention design of clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Clip and clamp both offer easy bundle installation.
- Independent rotation allows for adjustable routing orientation.
- Locking clamp dynamically fits a range of bundle sizes.
The MOC to LOC is a rotatable dual routing clip and clamp combination that keeps two routings secured and separated. A swivel coupler allows them to rotate independently of each other.
Brand: HellermannTyton
Type: MOC Clips to LOC Clamps
Alternate Product Number: MOC22FLOC15-19
Bundle Diameter: 0.79" Min | 0.98" Max
Color: Black
Depth: 0.47"
Flammability Rating: UL 94 HB
Halogen Content: Yes
Height: 1.44"
Length: 2.24"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40°F to +230°F (-40°C to +110°C)
RoHS Compliance: Yes
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
