HellermannTyton
HellermannTyton 156-02032 MOC Clip to MOC Clip Perpendicular, 9mm, 6mm Perp., PA66HIRHSUV, Black
Our Part #10217315
Mfr Part #156-02032
HellermannTyton
HellermannTyton 156-02032 MOC Clip to MOC Clip Perpendicular, 9mm, 6mm Perp., PA66HIRHSUV, Black
Our Part #10217315
Condition:New
Mfr Part #156-02032
RoHS
$EACH
Multiples of: 2,000
RoHS
- Description
- Specifications
- Documents
- Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.

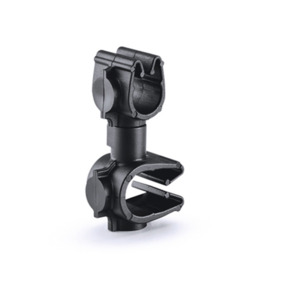

The MOC to MOC 180 is a rotatable dual routing clip that keeps two routings secured and separated. One clip is oriented 90 degrees from the other to provide alternative access for bundle attachment. A swivel coupler allows them to rotate independently of each other.
Brand: HellermannTyton
Type: MOC Clips to MOC Clips
Alternate Product Number: MOC9FMOC6M180
Bundle Diameter: 0.31" Min | 0.39" Max
Color: Black
Depth: 0.39"
Flammability Rating: UL 94 HB
Halogen Content: Yes
Height: 0.68"
Length: 1.24"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40°F to +230°F (-40°C to +110°C)
RoHS Compliance: Yes
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
