HellermannTyton 156-02114 MOC Clip to MOC Clip Perpendicular, 14mm, 26mm Perp., PA66HIRHSUV, Black
Our Part #10217361
Mfr Part #156-02114
HellermannTyton 156-02114 MOC Clip to MOC Clip Perpendicular, 14mm, 26mm Perp., PA66HIRHSUV, Black
Our Part #10217361
Condition:New
Mfr Part #156-02114
RoHS
$0.55EACH
Multiples of: 2,000
Condition:New
RoHS
- Description
- Specifications
- Documents
- Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.

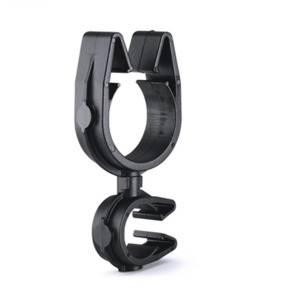

The MOC to MOC 180 is a rotatable dual routing clip that keeps two routings secured and separated. One clip is oriented 90 degrees from the other to provide alternative access for bundle attachment. A swivel coupler allows them to rotate independently of each other.
Brand: HellermannTyton
Type: MOC Clips to MOC Clips
Alternate Product Number: MOC14FMOC26M180
Bundle Diameter: 0.51" Min | 0.62" Max
Color: Black
Depth: 0.47"
Flammability Rating: UL 94 HB
Halogen Content: Yes
Height: 1.36"
Length: 2.6"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40°F to +230°F (-40°C to +110°C)
RoHS Compliance: Yes
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
$0.55EACH
Multiples of: 2,000
