HellermannTyton
HellermannTyton

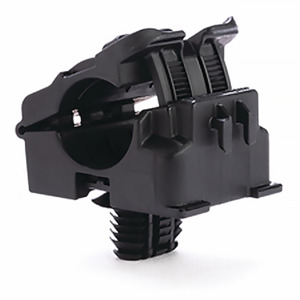

HellermannTyton 156-02632 Ratchet Clamp, Fir Tree Mount, .50-0.77" Bundle Dia, PA66HIRHSUV, Black

Our Part #10217533

Mfr Part #156-02632

HellermannTyton 156-02632
HellermannTyton
HellermannTyton

HellermannTyton 156-02632 Ratchet Clamp, Fir Tree Mount, .50-0.77" Bundle Dia, PA66HIRHSUV, Black

Our Part #10217533

Condition:New

Mfr Part #156-02632

RoHS
$EACH
Multiples of: 250
RoHS
  • One-piece ratchet closure allows for easy installation during pre- or final assembly.
  • Easy release feature simplifies quick adjustments and maintenance.
  • Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
  • High-performing oval fir trees ensure anti-rotational routing in existing or stamped oval or rectangular holes with no additional hardware required.

The Inline Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. Built-in attachments include round and oval fir trees and adhesive mounts, so no additional hardware is needed for securing to a hole or panel. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The adjustable clamp can be closed by hand to the desired diameter. The release feature allows easy and nondestructive removal of cables simply by using a flat-head screwdriver. In this way, the clamp can be reused or serviced without removing it from the mounting surface.

Brand: HellermannTyton
Type: Inline Ratchet Clamps
Alternate Product Number: IRCBFT9X17
Bundle Diameter: 0.50" Min | 0.77" Max
Color: Black
Flammability Rating: UL 94 HB
Length: 1.37"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter: 0.35 x 0.67 "
Mounting Type: Fir Tree Mount
Operating Temperature Range: -40°F to +221°F (-40°C to +105°C)
RoHS Compliance: Yes
Series: Ratchet P-Clamp Series
Tensile Strength: 100 lb./in.
Thickness: 0.02 - 0.27"
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 1.37"
$EACH
Multiples of: 250
