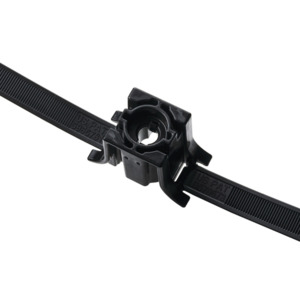

HellermannTyton 157-00060 Dual Clamp Ties, Stand Off, 26.1"Lx0.5"W, PA66, Black, 250/Pkg
Our Part #10217616
Mfr Part #157-00060
HellermannTyton
HellermannTyton 157-00060 Dual Clamp Ties, Stand Off, 26.1"Lx0.5"W, PA66, Black, 250/Pkg
Our Part #10217616
Condition:New
Mfr Part #157-00060
RoHS
$EACH
Multiples of: 250
RoHS
- Description
- Specifications
- Documents
- Wide strap minimizes pinching of soft hoses and convoluted tubing.
- Clamping rails increase circumferential grip on varying bundle diameters.
- Locking stud mount pawls allow for easy hand insertion.
- Nut or weld nesting counterbore provides flush mounting at the base.
- Material is Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Stand Off Dual Clamp Ties offer the same features as the standard dual clamp tie, with a standoff mount that secures the bundle away from the side of the frame rail. This protects the bundles from bolts and other protrusions.
Brand: HellermannTyton
Type: Specialty Cable Ties
Package Quantity: 250 Per Pkg.
Alternate Product Number: SDCTL
Bundle Diameter: 0.375" Min | 3.4" Max
Closure Type: plastic pawl
Color: Black
Flammability Rating: UL 94 HB
For Use With: 104-10010;110-09100;110-09110;110-80003;110-80017
Height: 1.47"
Length: 26.1"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40 to +230°F
RoHS Compliance: Yes
Tensile Strength: 100 lb.
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 0.5"
