- All-in-one bundling and fastening solution reduces costs and assembly time. Anti-rotational oval fastener forces bundle to travel in intended direction. Stand-off cable ties route and position bundles above a mounting hole to protect them from rubbing, heat or obstructions.

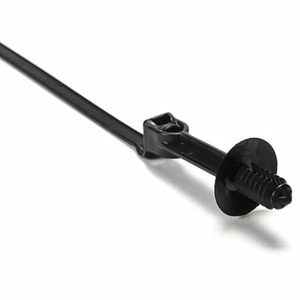

One-piece stand-off cable tie and mount offers a simple bundling and mounting solution. The innovative design of this fir tree establishes a 360-degree interface with the panel hole, ensuring a more secure fit. The oval shape won’t rotate once inserted, ensuring proper routing of wires and hoses. Stand-off feature positions bundles above a mounting hole. The disc prevents rattling in high-vibration applications and protects against debris ingress.
Brand:Â HellermannTyton
Type:Â Fir Tree Mount
Package Quantity:Â 500 Per Pkg.
Alternate Product Number:Â T50ROSFT625SO, PA66HIRHSUV
Bundle Diameter:Â 0.08" Min | 1.97" Max
Color:Â Black
Flammability Rating:Â UL 94 V-2
For Use With:Â 104-10010;110-05005;110-09100;110-09110;110-70083;110-70084;110-80000;110-80001;110-80003;110-80017
Height:Â 0.05"
Length:Â 8"
Material:Â Polyamide 6.6 heat stabilized (PA66HS)
Mounting Hole Diameter:Â 0.24 - 0.27"
Mounting Type:Â Fir Tree Mount
Operating Temperature Range: -40 to +221°F
RoHS Compliance:Â Yes
Style:Â 1-Piece Tie Assemblies
Tensile Strength:Â 50 lb.
Thickness:Â 0.02 - 0.22"
Tooth Type:Â Outside Serrated
Typical Use:Â For Indoor and Outdoor Use
UV Stablized:Â Yes
Width:Â 0.18"
