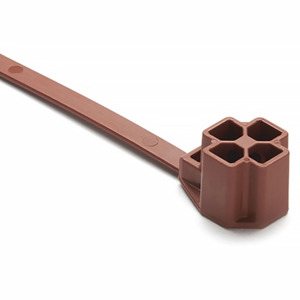

HellermannTyton 157-00293 Cable Tie, M8 Stud Mount, 8.3"x0.7", PA46, Brown, 500/Pkg
Our Part #10217681
Mfr Part #157-00293
HellermannTyton
HellermannTyton 157-00293 Cable Tie, M8 Stud Mount, 8.3"x0.7", PA46, Brown, 500/Pkg
Our Part #10217681
Condition:New
Mfr Part #157-00293
RoHS
$0.51EACH
Multiples of: 1,500
RoHS
- Description
- Specifications
- Documents
- Covers top of stud for protection from stud end. Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure. PA46 material option allows use in high-heat applications.
Stud Mount Ties offer outstanding stud retention. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
Brand: HellermannTyton
Type: Stud Mount
Package Quantity: 500 Per Pkg.
Alternate Product Number: T80ROSSB8U
Bundle Diameter: 0.14" Min | 1.97" Max
Closure Type: plastic pawl
Color: Black
Flammability Rating: UL 94 HB
For Use With: 104-10010;110-05005;110-09100;110-09110;110-70083;110-70084;110-80000;110-80001;110-80003;110-80017
Height: 0.05"
Length: 8.9"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Mounting Hole Diameter: 0.31" x 0.05"
Operating Temperature Range: -40 to +266°F
RoHS Compliance: Yes
Tensile Strength: 50 lb.
Tooth Type: Outside Serrated
Typical Use: For Indoor Use Only
UV Stablized: No
Width: 0.19"
