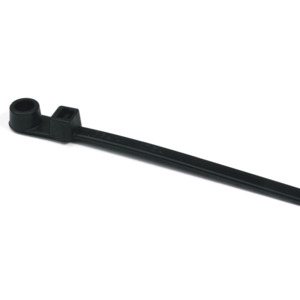

HellermannTyton 113-12060 1-Pc Cable Tie/Screw Mount, 15.6" L, 0.25" Hole, 4.02" Max Bundle Dia, 120lb, PA66UV, Black, 50/pkg Priced per EACH
Our Part #10236966
Condition:New
Mfr Part #113-12060
RoHS
$2.07Each-EA
Minimum order quantity: 50
Order in multiples of: 50
- Description
- Specifications
- Documents
- Screw-mount style delivers low insertion and high extraction force
- Fasten with a screw or bolt to provide secure routing of cable bundles
- Choose from several tensile strengths and lengths to accommodate a range of applications
HellermannTyton cable management and protection products like 113-12060 provide real solutions. For real challenges.
One-piece Screw Mount Cable Ties fasten with a screw or bolt to provide secure routing of cable bundles. Multiple configurations are available to cover a range of bundle sizes and tensile strengths.
Brand: HellermannTyton
Type: Screw Mount
Alternate Product Number: T120MR0UVK2
Bundle Diameter: 0.20" Min | 4.02" Max
Closure Type: plastic pawl
Color: Black (BK)
Flammability Rating: UL 94 HB
For Use With: 104-10010;110-05005;110-09100;110-09110;110-80000;110-80001;110-80003;110-80004;110-80017
Head Length: 1.12"
Head Width: 0.51"
Height: 0.31"
Length: 15.6"
Material: Polyamide 6.6 UV-resistant (PA66UV)
Mounting Hole Diameter: 0.26"
Operating Temperature Range: -40°F to +185°F (-40°C to +85°C)
Package Quantity: 50 Per Pkg.
RoHS Compliance: Yes
Tensile Strength: 120 lb./in.
Tooth Type: Inside Serrated
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
Width: 0.3"
$2.07Each-EA
Minimum order quantity: 50
Order in multiples of: 50
