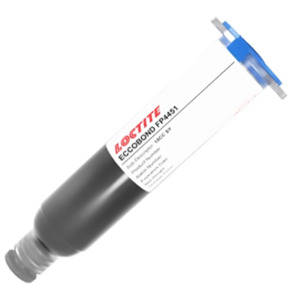

Loctite 537013 Epoxy Adhesive, Encapsulant, Tall Dam, Heat Cure, Black, 10cc, Must Ship on Dry Ice
Our Part #10233621
Mfr Part #537013
Loctite 537013 Epoxy Adhesive, Encapsulant, Tall Dam, Heat Cure, Black, 10cc, Must Ship on Dry Ice
Our Part #10233621
Condition:New
Mfr Part #537013
Requires Dry Ice
WARNING
Has Expiration Date
RoHS
Condition:New
Requires Dry Ice
Calif. Prop 65
Has Expiration Date
RoHS
- Description
- Specifications
- Documents
- Encapsulant - DAM
- High purity
- Exceptional thermal stability
LOCTITE® ECCOBOND FP4451TD damming material is designed as a flow control barrier around areas of bare chip encapsulation. It is designed for applications requiring a taller, narrow dam while also being ionically cleaner.
The ECCOBOND FP4451TD is the best DAM option available and it replaces the FP4451. "TD" stands for Tall Dam and implies that it has much better thixotropic properties. Due to the viscosity variation you can adjust the needle diameter in order to use the same DAM tool settings as with FP4451.
Recommended Cure Schedule
- 30 minutes at 125°C plus
- 90 minutes at 165°C
Brand: Loctite
Cure Type: Heat Cure
Viscosity: 300000 cP
Color: Black
Series: ECCOBOND FP4451 Series
Shelf Life: 270 days
Storage Temperature: -40.0 °C
