Hakko FX972-011 Soldering Station, Dual Port, 200W, 120V, ESD-Safe, Handpieces Not Included, FX-97 Series

Hakko FX-972 Dual-Port Soldering Station | Advanced Soldering & Desoldering Solution for Professionals

The HAKKO FX-972 Dual-Port Soldering Station is a cutting-edge tool designed for precision, efficiency, and versatility, making it ideal for professionals in electronics assembly, repair, and manufacturing. This 200W soldering station enables simultaneous operation of two tools, allowing users to tackle multiple tasks at once and significantly boost productivity. With support for up to eight different types of handpieces—including standard, micro, rework tweezers, micro tweezers, heavy-duty irons, and nitrogen handpieces—the FX-972 can meet a wide range of soldering and desoldering needs. It features a large LCD screen, an intuitive user interface, and wireless IR temperature offsetting for enhanced control. Additionally, the FX-972 integrates with the HAKKO Control Software (version 4.0 or higher) for advanced functionality and seamless operation.

Note: The FX-972 is a STANDALONE station and does not come with any handpieces, all handpieces must be purchased separately. Temperature range varies with handpiece.

Features & Benefits

• Temp Ranges 50°C-500°C (120°F-940°F)

• Power consumption: 200W

• 60+ Tip Size and Shapes

• 8 Handpiece Options Available

• HAKKO Control Software

• FG-100/101B Wireless IR Offsetting

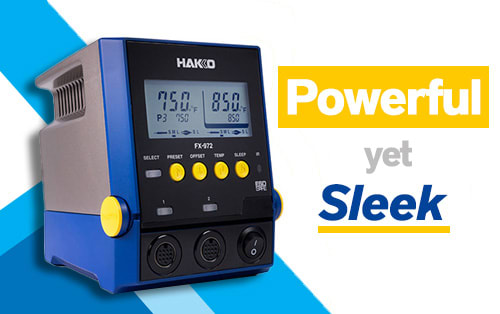

The Next Generation Soldering Station from Hakko

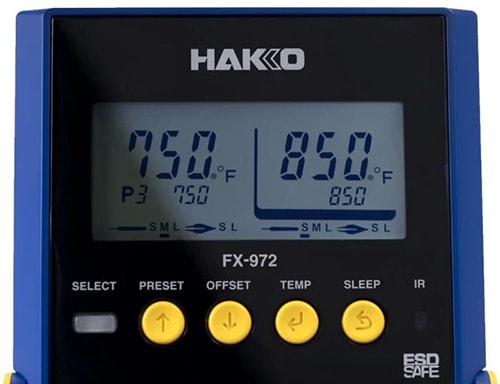

The FX-972 is a next-generation, high-performance 200W soldering station that supports a wide variety of new handpieces, drawing on the best features of the FM-203. Designed with a compact footprint, it allows for easy stacking of multiple units to save bench space. The station also features a new, easy-to-read display that is over three times larger than the FM-203's, simultaneously showing both the set temperature and the sensor temperature. Additionally, the LCD screen dynamically shows icons representing the specific handpiece connected, providing users with a quick visual identification of the active tool.

In The World of Precision Soldering, Every Degree Matters

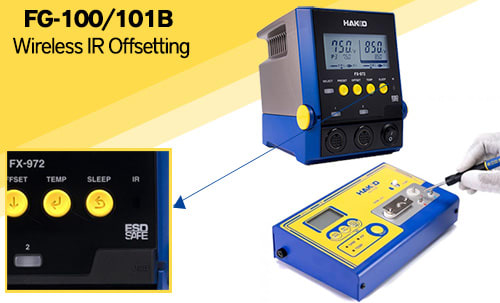

The interface has been completely redesigned to be intuitive, incorporating new features like an IR receiver that wirelessly receives tip-off settings from the FG-100B Tip Thermometer or FG-101B Station Tester. It also includes a preset mode for selecting up to 5 user-programmable presets, a 3-letter passcode lock for process control, and a user-selectable sleep temperature setting.

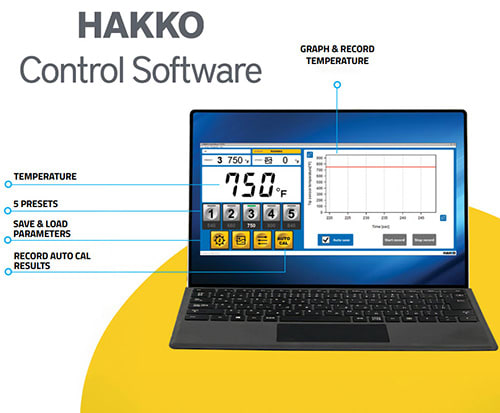

Unleash the Power of the FX-972 with Hakko Control Software

The HAKKO FX-972 includes a USB interface that allows the station to be set up, controlled, and monitored from a PC using the HAKKO Control Software that is included with the station.

The Hakko Control Software enables operators to store and load multiple parameter settings for enhanced process control, allowing them to configure profiles, parameters, and tip temperatures. With the updated software, operators can also record tip temperature data, track tip offset measurements, and view real-time temperature graphs directly from a PC.

Versatility Like Never Before

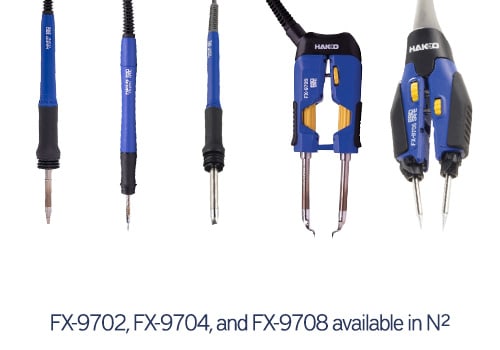

The FX-972 is compatible with eight different handpieces, including standard, micro, and heavy-duty irons, as well as tweezers and nitrogen-compatible tools:

• FX-9701, T39 Series Standard iron

• FX-9702, T39 Series Standard iron (nitrogen compatible)

• FX-9703, T50 Series Micro Iron

• FX-9704, T50 Series Micro Iron (nitrogen compatible)

• FX-9705, T51 Series Rework Tweezer

• FX-9706, T52 Series Micro Tweezer

• FX-9707, T53 Series Heavy Duty Iron

• FX-9708, T53 Series Heavy Duty Iron (nitrogen compatible)

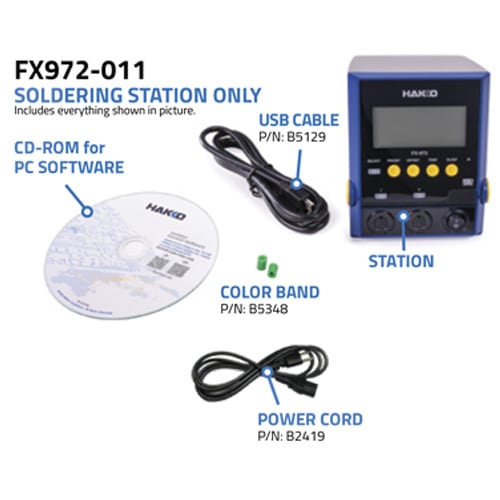

What's in the box?

• FX972-011 Soldering Station

• B5348 Color Bands (2 pcs)

• B2419 Power Cord

• B5129 USB Cable

• CD-ROM

• Instruction Manual
