Altech
Altech PSC-7524 Power Supply, Single Output, 24 V, 3.2 A, 75 W, 1P, 85-264 VAC, PSC-75 Series
Our Part #10235057
Mfr Part #PSC-7524
Altech
Altech PSC-7524 Power Supply, Single Output, 24 V, 3.2 A, 75 W, 1P, 85-264 VAC, PSC-75 Series
Our Part #10235057
Condition:New
Mfr Part #PSC-7524
$144.28EACH
Condition:New
- Description
- Specifications
- Documents

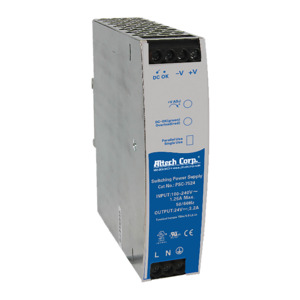

Altech PSC-7524 24V/3.2A/75W DIN Rail Power Supply
Key Features- Output Voltage 24 V
- Rated Max Power 75 W
- Rated Current 3.2 A
- Universal AC input range(85 ~ 264Vac)
- Support 1+1 or N+1 redundant system (suggest to use redundancy modules.)
- Built-in active PFC,PF>0.95
- High efficiency of 88%
- Built-in current sharing function
- Built-in current limiting circuit
- Output protections: OVP/OLP/SCP/OTP
- Wide operating ambient temp (-25° ~ 70°)
- 3 year warranty
- 150% peak load capacity
- Easy Fuse Tripping due to High Overload Current
- Excellent Partial Load Efficiency
- Built-in DC OK relay contact
- Can be installed on 35 mm DIN rail
- 100% full load burn-in tes
- PCB with conformal coating
- Suitable for critical applications
- Ultra-slim,32mm width
- 3 years warranty
Brand: Altech
Output Voltage: 24 V
Output Current: 3.2 A
Power Rating: 75 W
Input Voltage: 85-264 VAC
Number of Outputs: Single Output
Series: PSC-75 Series
Mounting Type: DIN Rail
Operation: Switching
Series Compatibility: PSC-75 Series
Special Features: 24 V, 3.2 A, PFC, Output protections: OVP/OLP/SCP/OTP, 1 Phase
Type: Ultra Compact Power Supply
$144.28EACH
