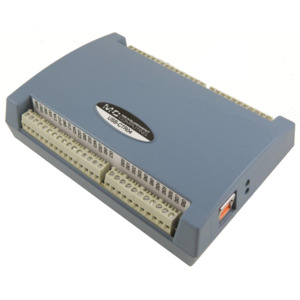

Diglient SB-CTR04 High-Speed Counter / Timer USB Device

Features and Specifications

• Four counter inputs
• FPGA Counter type
• 48 MHz maximum input frequency
• Software-selectable resolution up to 64-bits
• Aggregate scan rate of 8 MB/s
• Supports Totalize, Period, Pulse width, and Timing counter input modes
• Four independent pulse-width modulation (PWM) timers
• Eight bit-configurable digital I/O channels
• Signal I/O Screw Terminal
• External clock input and internal clock output
• Synchronous high-speed reads of digital and counter inputs

The USB-CTR04 is a USB 2.0 high speed device that is compatible with USB 3.0 ports. The device is also compatible with USB 1.1 ports, but use with this older hardware is not recommended due to longer initialization times that can occur when the USB-CTR04 is connected through USB 1.1 ports or hubs. I/O connections are made to two banks of screw terminals. The USB-CTR04 is powered by the 5 volt USB supply from your computer.

USB-CTR Series Overview

USB-CTR Series devices provide high-speed counter/timer operations synchronized with digital I/O functions. Both the eight-channel USB-CTR08 and the four-channel USB-CTR04 feature high frequency and scan rates, debounce filtering, support for multiple counting modes, and software-selectable resolution up to 64 bits thereby eliminating the need to cascade counters. Both devices also provide eight individually-configurable digital I/O channels.

Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, Linux, and Python.

What's in the Box

• USB-CTR04 USB Device
• USB cable - 3 m (9.84 ft)
• DAQami Quick Start Printed Insert
